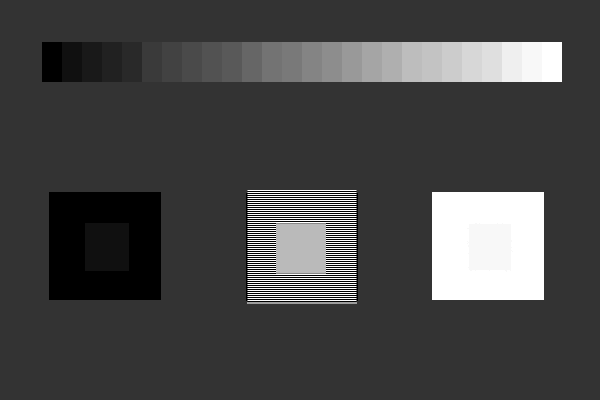

The first image below is a gray scale of 26 equal sized distinct shades. You should be able to see all the shades if your monitor is set up correctly. The lower square blocks can be used to adjust your monitor. The black square has a lighter black square in the center. You should adjust your "Brightness" until the center square is just visible but the outer square is still black. The white square has a darker white square in the center. Adjust the contrast of your monitor until you can just see the center square but the outer square is still white. The center square is a gamma 2.2 test (some older MAC computers may be calibrated for 1.8 gamma). If you stand back across the room, you should not be able to see a difference between the shade of the center block and the shade of the main part of the block. You can use Adobe Gamma to adjust the gamma of your monitor. Adobe Gamma comes with the various Photoshop programs. There are other programs that will allow you to adjust gamma and your video card driver may allow this as well. Of course, the best way to calibrate your monitor is with a hardware calibrator that you hang in front of your monitor. They cost several hundred dollars so are not for everyone. I use one called a Eye-One. Press F11 on our keyboard to view this full screen.

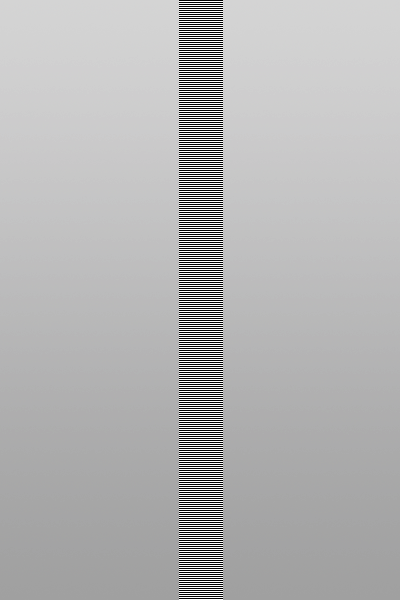

The image below is another way to measure the gamma of your monitor. For a properly set up 2.2 gamma monitor, the center bar should look equally too dark on the top and too light on the bottom with the center matching the background. You may notice that the gamma changes with the viewing angle on your LCD monitor. That is why I use a LaCie CRT monitor for my critical color work.
Return to HOME
©2006 Allen Edwards
